A robot dress pack is the engineered package that carries everything a robot needs to do its job — power, signal, data, air, water, weld current, process media — from the base of the robot to the tool at the end of the arm, and does it for millions of cycles without failing.
It is not a cable bundle. A bundle is what you get when cables are strapped to an arm; a dress pack is what you get when someone calculates how those cables will move.

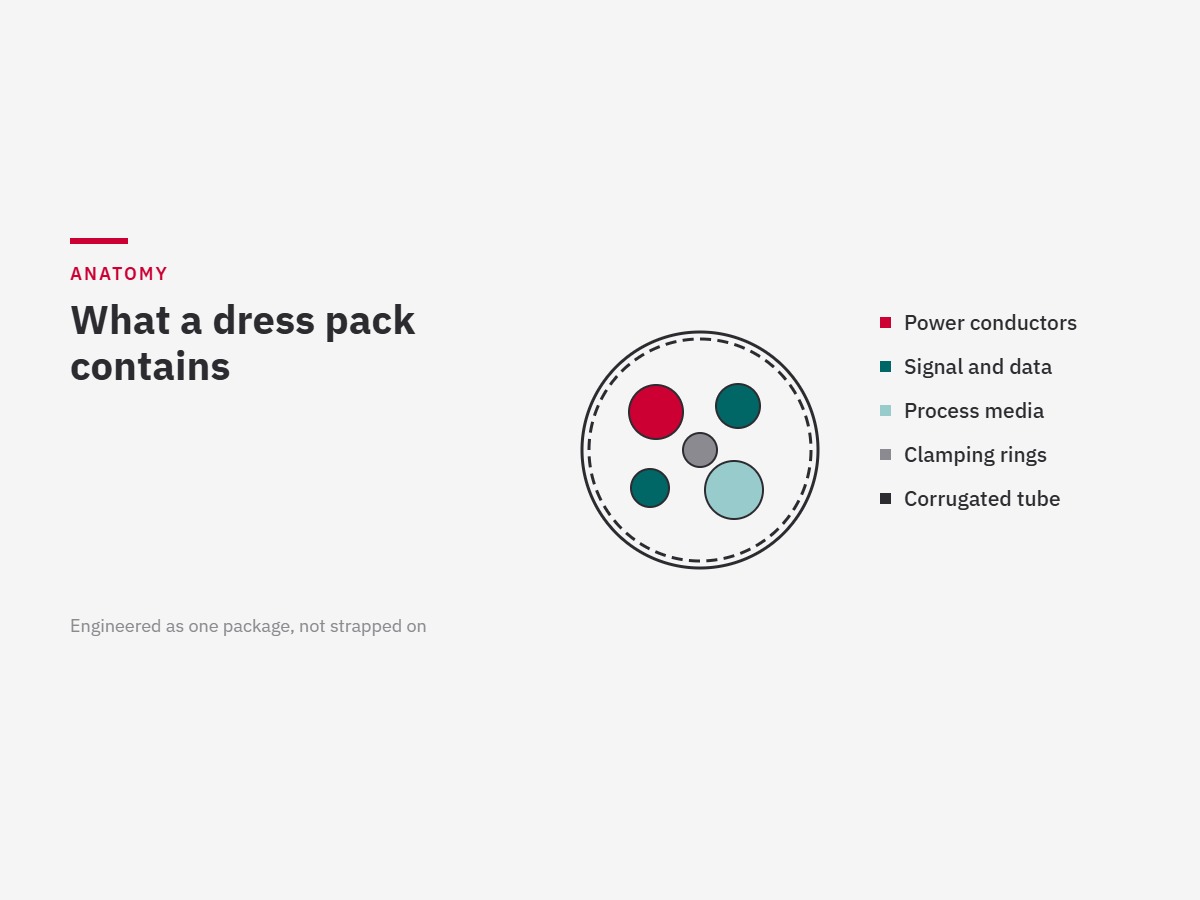

What is in one
- Conductors for power, signal and feedback, built from fine strands specifically to survive repeated flexing
- Hoses for compressed air, cooling water, shielding gas or process media
- Corrugated tube or a closed housing to contain and protect them
- Supports, ball guides and brackets that fix the package to the robot at defined points
- Clamping rings and strain relief that hold each core at its own diameter
- Where the motion demands it, a retraction system that takes up slack as the arm moves
Why it is engineered rather than assembled
A robot arm does not bend cables the way a person does. It twists them. The sixth axis can rotate through 360 degrees or more, and torsion — not bending — is what eventually breaks a conductor. A cable rated for millions of bend cycles may last months under torsion it was never specified for.
So the package has to be designed around three things at once: the reach and path the robot will actually run, the torsion each axis imposes, and the environment — heat, spatter, coolant, washdown, contamination limits. Get any of those wrong and the failure shows up months later as intermittent signal loss, which is the hardest kind of fault to diagnose.
Why it matters commercially
Cable failure is the leading cause of unexpected downtime on a robotic production line. The dress pack is a small fraction of the cost of a cell and a large fraction of its unplanned stoppages, which is the whole reason it is worth engineering rather than improvising.
The main types
Complete dress pack
Supplied fully assembled with the cables and hoses inside, ready to fit. See Complete Dress Pack.
Empty dress pack
The mechanical package without the media, for customers who supply their own cables. See Empty Dress Pack Solution.
Retraction systems
Spring or profile-based systems that manage slack through the motion. See RoboRoc and RoboRex.
