Dress packs · Producto insignia

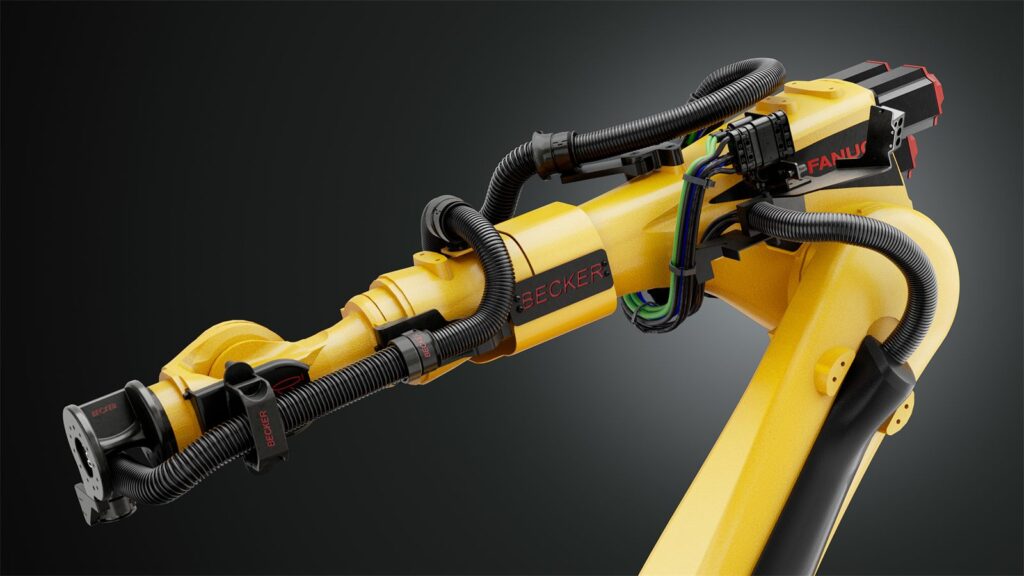

LHMS — Lean High Motion System
Una plataforma de dress pack estandarizada y ligera para operación continua de alto movimiento: máximo rango de movimiento con objetivos de MTTR definidos — demostrada en operación continua con FANUC en Japón y Norteamérica.
- Máximo rango de movimiento para aplicaciones de alto movimiento
- Objetivos de MTTR: ≤ 7 min en manejo de materiales / ≤ 15 min en soldadura de punto con pinza a bordo
- Completamente sellado contra polvo y contaminantes
- Materiales conformes con la norma de seguridad contra incendios UL94 V-2
Cada sistema se configura por modelo de robot y aplicación — el precio se cotiza por especificación.
Datos técnicos
Qué incluye
- Plataforma LHMS configurada por modelo de robot y aplicación
- Tubo corrugado de protección con alivio de flexión
- Cables y mangueras de medios específicos de la aplicación
- Soportes y bases de montaje específicos para cada robot
- Registro de validación y documentación de instalación
Designed as part of the robot — not an add-on
The LHMS is engineered as a natural extension of the robot: a clean integration with minimal visual footprint that preserves the robot manufacturer’s design language at the customer site, with a consistent appearance across global installations.
Every key design area is defined and engineered for stable mechanical behavior, controlled routing, and full compliance with the robot’s interference and motion requirements.
Validated motion performance
Motion behavior equal to or exceeding the FANUC R-2000 wrist-axis (SA) — validated in combined worst-case cases, including full ±240° J4 rotation with the arm folded back (J2+J3 at −75°).
- Short-arm support with dual bearing guidance at the J4 axis — stable load transfer, controlled rotation
- Bearing-guided, self-lubricating rotation concept — reduced friction and wear under high dynamic motion
- Defined rotational interfaces — no torsion transfer into the cable bundle during combined axis motion
- Optimized short-arm geometry — minimal overhang within the designated interference envelope
- Controlled routing that maintains the minimum bend radius under worst-case combined motion
One global standard — compliant everywhere
One centrally governed specification meets German automotive OEM factory specifications (Lastenheft) and FANUC integration requirements with the same system — no regional deviations, no re-engineering.
- Corrugated tubing for robust cable protection on axes 3–6
- Closed dress-pack design with defined bend relief and integrated cable grease
- Approved high-flex robotic cables only, with individual strain relief per cable
- No robot-specific adjustments during installation
- Standardized service, documentation and spare-part concepts worldwide
Deployed globally, supported locally
First-class support with local presence in Japan, Europe, the USA, Mexico, India, China and other key regions — customized spare-part kits and standardized dress-pack inventories, ready for immediate availability.
- Spare-parts delivery and service-engineer deployment within 24 hours, where required
- Typical lead time of 4–6 weeks from Becker locations to regions worldwide
- 3-year warranty as standard, with optional extensions
- DCDI QR code on every robot — documentation, spare parts and escalation one scan away
Solicitar cotización para este sistema
Díganos su modelo de robot y aplicación — un ingeniero se encarga desde ahí.
Refacciones para este sistema
Este sistema aún no tiene refacciones de catálogo asociadas — un ingeniero puede identificar la pieza de repuesto correcta a partir de una foto o del número de parte. Consulte a un ingeniero →
