Precision Heat. Reliable Performance.
Our high-pressure, temperature-controlled hoses are designed to provide accurate and stable temperature regulation for demanding applications involving various fluids. Built with multiple options of high-pressure PTFE liners layered with durable steel braiding, they deliver reliable performance even in demanding motion applications. The integrated, abrasion-resistant heating element ensures consistent heat distribution, while the protective corrugated tubing enhances longevity and durability.
Fully compatible with Becker mounting fixtures, the system installs quickly and seamlessly—providing a dependable solution designed for real-world use.
The hose system features a high-pressure PTFE inner core reinforced with triple-layer steel braiding, combined with an abrasion-resistant insulated heating element for uniform heat distribution. A dual-layer insulation system and robust corrugated outer protection ensure thermal stability and mechanical durability.
Each component is carefully selected to support performance, longevity, and ease of integration with existing systems.
Key Feature
- Silicon-free
- Suitable for dynamic industrial environments
- Robust, high-quality, and durable materials
- Seamless connectivity with major heating controller
- Customizable fittings, lengths, and pressure ratings
- Reliable temperature monitoring with integrated PT100 sensor
Customization & Integration
We understand that every industrial application has unique requirements. Our Temperature-Controlled Hose System is available in a wide range of:
- Lengths
- Pressure ratings
- Fittings
- Connector options
- End-cap configurations
System Components:
Inner Hose: PTFE core reinforced with three layers of steel braiding for high-pressure resistance.
Heating Element: Insulated resistance wire heating with abrasion-resistant stainless steel braiding for uniform temperature control.
Insulation: Dual-layer insulative felt for optimal heat retention and efficiency.
Protective Covering: TPC-ET corrugated tubing for mechanical protection and flexibility.
Wire Conduits: PA6 corrugated tubing.
Temperature Sensor: Integrated PT100 sensor for precise thermal monitoring.
Power Connection: HAN3A power connector (customizable options available).

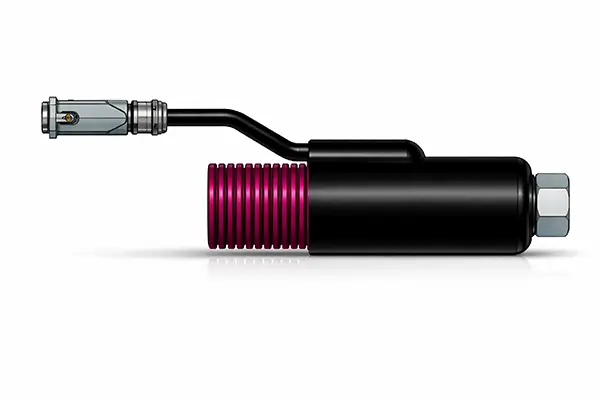

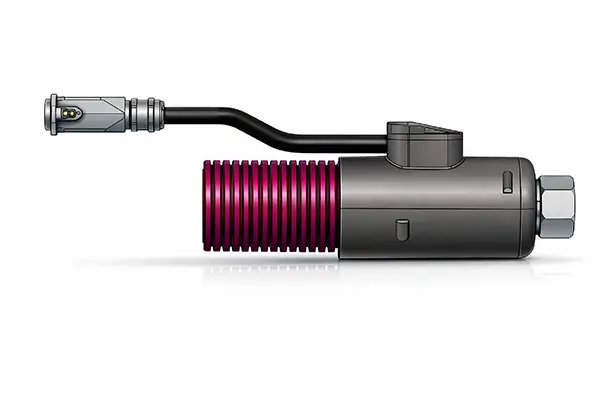

End Caps: Injection-molded rigid assembly or flexible heat-shrink options.
Fittings: Ferrule and union nut configurations available.
